Tutorial: Make Your Own Pin to Necklace Converter

Just two weeks ago, I didn't know such a thing as a pin to necklace converter existed, so I ordered a couple to use. They look nice and I love the clean lines and the idea that it is such an easy accessory to use to make your jewelry more versatile.

manufactured pin to necklace converter

A couple things bothered me though. The number one problem was the size. If you look at the photo of the brooch below, you'll see that the converter tube is much shorter than the pin. This results in lots of sliding around. I haven't tried wearing it like this, but I'm pretty sure I wouldn't like the effect.


manufactured pin to necklace converter

So I started thinking of ways to create my own pin to necklace converter. I came up with two different methods based on whether your pin is horizontal or vertical that I am going to share with you.

First up is making a pin to necklace converter for a horizontal pin. (a side note: I am assuming you have basic wire working skills. If not, mention it in the comments and I can recommend some online videos to watch)

You will need:
-12-18" of 18g wire depending on how long you want the bail to be and how long the sharp pointy part of your pin is.
-18" or so of 24g wire.
-basic wire working pliers and cutters
-small wrap n tap pliers
-thin steel mandrel or a scrap piece of heavier gauge wire (like 16 or even 18)

Step 1: Get the 18g wire relatively straight. It doesn't have to be perfectly straight. Just straight-ish. Begin coiling the 24g wire around the center of the18g wire. This will be your bail, so decide how much coil you want for the size bail you think will best suit your design and coil enough wire.

pin to necklace converter tutorial

Once you've got the appropriate length coil, cut the excess 24g wire, then slide the coil as close to the center as possible.

Grab your wrap n taps, and placing those in the center of the coil, slowly begin to shape your bail.


pin to necklace converter tutorial

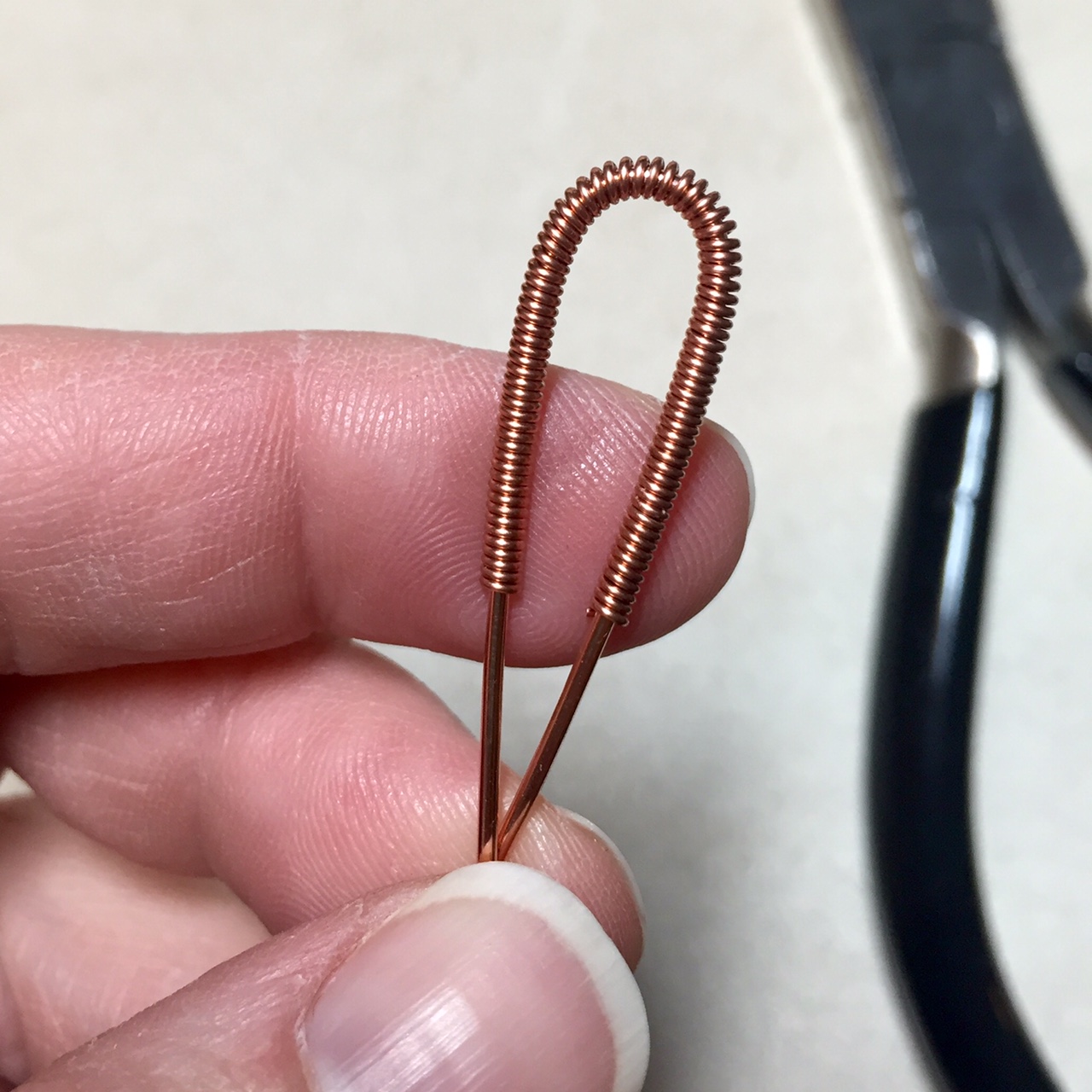

Here's about what it should look like:


pin to necklace converter tutorial

The next couple steps are a bit fiddly, and you will end up slightly disturbing the perfect shape of your bail, but we'll fix it at the end.

If there is a longer piece of 18g wire without a coil, use that to wrap around the other end of wire, forming a wire wrapped loop. You do not need more than 1 or 2 wraps.

pin to necklace converter tutorial

Assuming you want your bail to go directly on the necklace, you will need to bend the ends of the 18g wire to go perpendicular to the loop. See photo below.


pin to necklace converter tutorial

Once you've bent the wire ends to perpendicular, you will use a steel mandrel to coil the 18g wire ends. Using your non-dominant hand, hold the loop and the end you are not working with. Try to keep them still by bracing them against the mandrel. This is very fiddly, just go slow and be methodical.


pin to necklace converter tutorial

Continuing to coil the 18g wire around the mandrel.


pin to necklace converter tutorial

Once you've done one end, turn the entire thing around and start coiling the other end.


pin to necklace converter tutorial


pin to necklace converter tutorial

Test the fit of your pin converter and cut coils as needed for the converter to fit. Here's what the finished product looks like:


pin to necklace converter tutorial



pin to necklace converter tutorial


To make the vertical pin to necklace converter, you will need
-Approximately 6" of 16g wire
-basic wire working pliers and cutters
-small wrap n tap pliers

Grasp the very tip of the 16g wire with small wrap n tap pliers and make a loop.



pin to necklace converter tutorial

Place the wire with the loop through the pin. Estimate how long you want your bail to be to complement your design.


pin to necklace converter tutorial

Using small wrap n tap, make the loop for the bail. Wrap in a typical wrapped loop. You can lightly hammer the loops if desired.


pin to necklace converter tutorial

Here's how the vertical pin to necklace converter looks.


pin to necklace converter tutorial

Any of the things in this tutorial can be altered to better work with your designs. You can also do the coiled bail on the vertical if you prefer.
